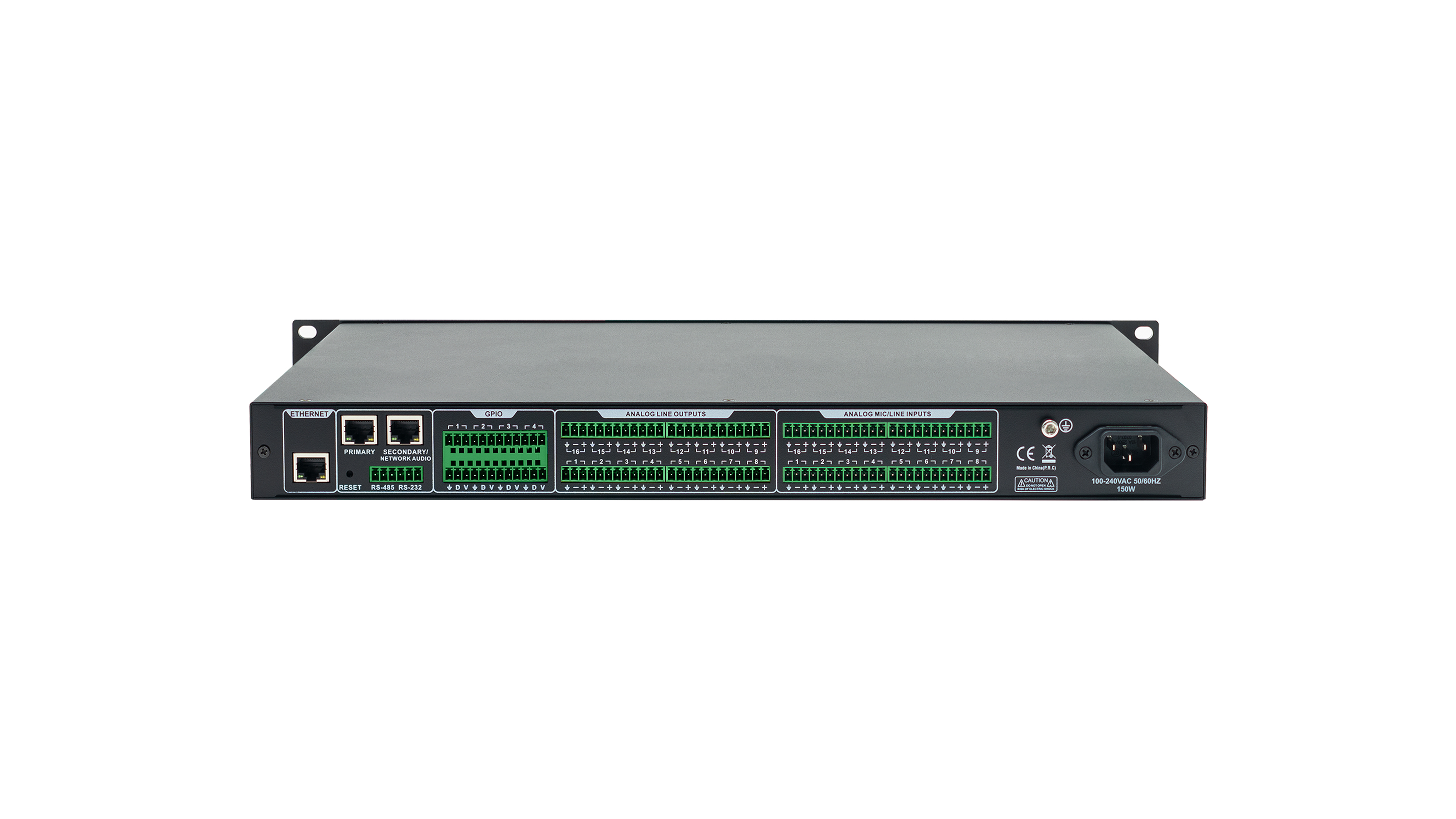

16×16 Audio Matrix Controller
VIS-DAP1616
33×33 ch DSP processing (450MHz/64-bit)
Dual-network audio (16×16 Dante/Audiolink)
Smart algorithms (12/31-band EQ, AEC, ANC)
16-scene recall + multi-platform control
The VIS Series professional audio matrix controller delivers high-performance digital audio processing with a 450MHz DSP chip and 64-bit floating-point technology, offering 33×33 channel capacity with 48kHz/120dB high-fidelity audio quality. Featuring 8 balanced inputs, USB interface, and optional 16×16 Audiolink or Dante networking modules, it incorporates professional 12-band parametric EQ, auto-mixing and feedback suppression on inputs, while outputs feature 31-band EQ and crossover functionality. Supporting dual-network protocols and multi-platform control with 16 scene presets, this processor is engineered for professional applications including conference rooms, theaters and broadcast facilities, representing an optimal solution for premium audio system integration.
● 33 input channels and 33 output channels for audio processing
● Supports 36x33 matrix mixing functionality
● Supports up to 16x16 Audiolink network audio or 16x16 Dante network audio
● Provides 16 channels of uncompressed, low-latency digital audio for Audiolink conference hosts, expansion hosts, amplifiers, and POE speakers
● USB interface for easy PC audio source and video conference communication handling
Model for Order:
VIS-DAP1616 ......16×16 Audio Matrix Controller
VIS-AL8...... 8×8 Audiolink Network Module, order and pre-install in VIS-DAP84 or VIS-DAP88
VIS-AL16......16x16 Audiolink Network Module, order and pre-install in VIS-DAP1212 or VIS-DAP1616
VIS-DANTE-8......8×8 Dante Network Module, order and pre-install in VIS-DAP84, VIS-DAP88, VIS-VLI700A-4/8/16 or VIS-DCP2000-D/W/R
VIS-DANTE-16......16x16 Dante Network Module, order and pre-install in VIS-DAP1212, VIS-DAP1616, VIS-VLI700A-4/8/16 or VIS-DCP2000-D/W/R
● 33 input channels and 33 output channels for audio processing, providing signal routing and management capabilities for various sound system applications.
● Inputs:
- 16 balanced microphone/line inputs
- 1 auxiliary input for USB
- Optional 16 digital inputs via Audiolink or Dante
● Outputs:
- 16 balanced outputs
- 1 auxiliary output for USB or recording playback
- Optional 16 digital outputs via Audiolink or Dante
● 16×16 Audiolink audio networking module (optional), compatible with CLEACON system software control, or 16×16 Dante audio networking module (optional), supporting Dante Domain Manager and AES67.
● Audiolink I/O delivers 16 channels of uncompressed, low-latency digital audio for Audiolink-compatible conference hosts, expansion hosts, amplifiers, and PoE speakers.
● A/D and D/A Conversion: 120dB dynamic range with support for sampling rates up to 48kHz
● Processor: Equipped with high-performance ADI 450MHz DSP processing chip.
● Input Source Selection: Features switchable balanced microphone/line input modes using Phoenix connectors.
● The 64-bit floating-point DSP engine delivers multi-channel audio processing without quality loss while maintaining ultra-low, constant latency to ensure perfect audio-video synchronization regardless of channel count or processing load.
● Copy/Paste Functionality for Processing Modules: Accelerate system design by copying parameter settings between individual modules or groups of similar modules via standard cut-and-paste commands in the graphical interface.
● Each input channel includes pre-amplification, signal generator, expander, ducker, compressor, 12-band parametric EQ, AGC, AM auto-mixing, AFC feedback cancellation, ANC noise suppression, AEC echo cancellation, and audio matrix, etc.
● Each output channel features a speaker manager with 31-band parametric EQ, delay, crossover, high/low-pass filters, and limiter.
● Compatible with Windows, iOS, and Android for flexible system management
● Features an Ethernet port for versatile data transfer and control, enabling real-time management of single or multiple devices.
● Offers an intuitive, user-friendly graphical control interface for quick onboarding and seamless operation.
● Expandable USB port enables device upgrades while supporting USB recording/playback and functioning as a 1x1 USB audio interface.
● Full-featured matrix mixing system delivers automatic mixing capabilities with precise individual channel control.
● Built-in camera tracking feature
● Equipped with bidirectional RS232/RS485, standard Ethernet control, and 8 programmable GPIO channels with customizable I/O configurations.
● Support tablet computer operation interface
● 16 Recallable Scene Settings
● The graphical control interface is fully compatible with Windows XP through Windows 10 environments.
