The VW4 is designed to be performed as video wall processor, with its compact but versatile features, you can easily to realize video wall picture in many ways to manage the digital signal input, on the display like LCD, Plasma, TV etc.
The input signal types: HDMI, VGA, Composite video, moreover, the decoded video like RMVB, audio and Photos can be processed through USB. Output HDMI port to meet the most common interface on the display to support up to 1080P.

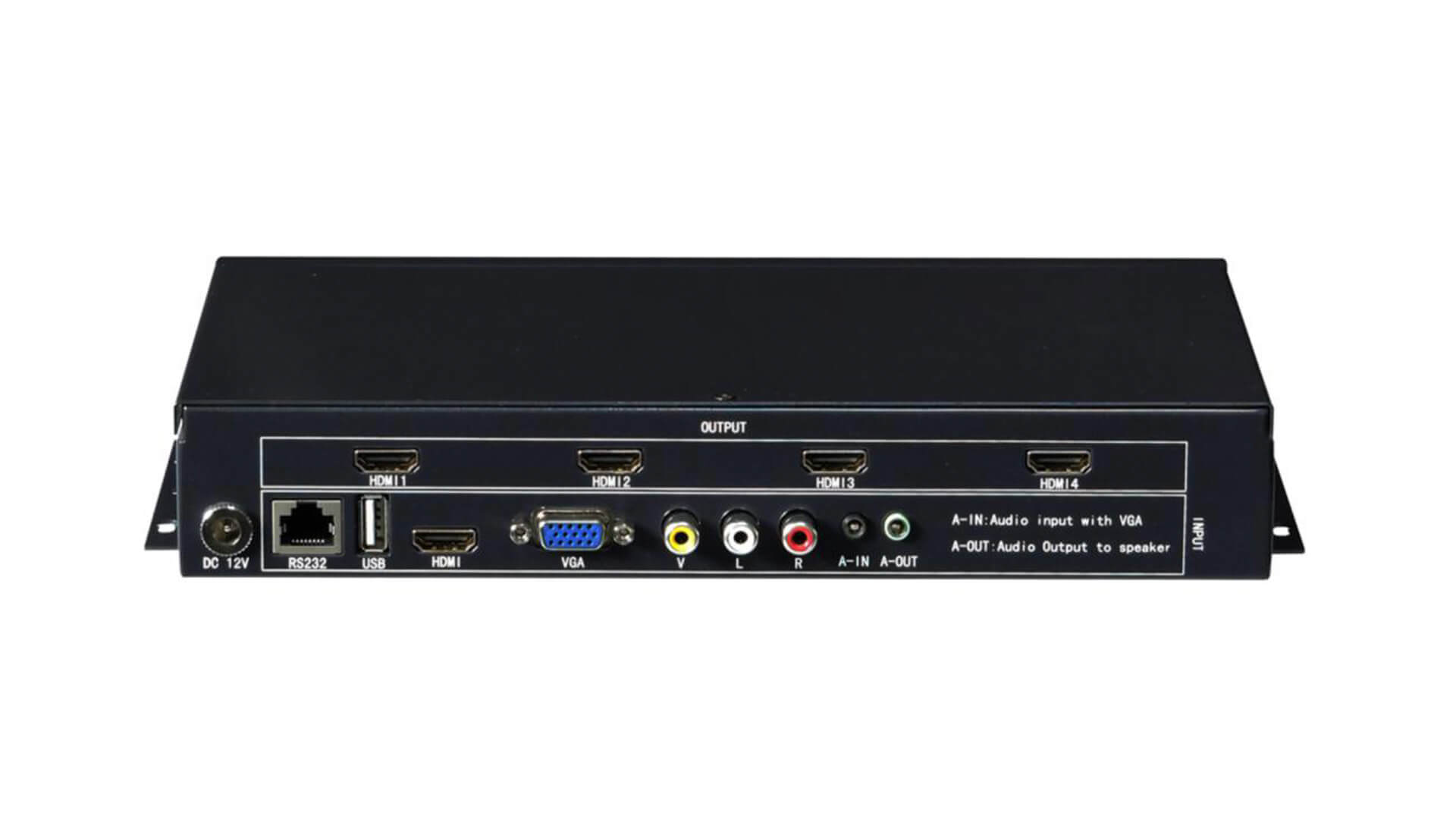

●It supports 4 channel HDMI output, connect to 4 pcs LCD, DLP, Plasma etc terminal display, to build a complete picture on it. Can be customized to 2x2, 1x4, 4x1 etc mode. Input signals support 1x Composite video, 1x HDMI, 1x VGA and 1x USB.
●All-type-format signal--- including composite video, VGA, DVI, HDMI etc.
●Advanced full digital chipset process --- Built-in conversion for analog/digital, interlaced/progressive, resolution, aspect ratio and refresh rate.
●HDCP compliant---HDMI 1.3, HDCP protection
●High precise picture margin stitching technology—Compare to normal video wall processor, it has unique physical margin decrease technology, to make the whole picture display in right dimension but not be processed into distortion picture.
| Type | Content |
| HDMI input | |
| Interface | HDMI（support HDCP1.3 and DVI1.0） |
| Resolution | Up to 1920*1080@60Hz |
| Color | 24bit,16.77M |
| VGA input | |
| Interface | DB15 |
| Resolution | 800*600 to 1920*1080@60Hz |
| AV input | |
| Interface | RCA |
| Identification | Auto |
| Standard | PAL,NTSC |
| USB | |
| Video | RM、RMVB、AVI、WMV、MOV、MP4、FLV、MPG、DAT、MPEG etc, resolution up to 1080P |
| Audio | MP3、WMA、FLAC and so on |
| Picture | JPG、BMP、PNG |
| Text | TXT |
| Audio in | VGA video |
| Audio output | With Output video |
| HDMI output | 1024*768@60hz,720P@60Hz,1080P@60Hz |
| Control | Remote,button,RS232 |
| Dimension | 260mm(L)x150mm(W)x44mm(H) |
