Retractable Touchscreen with Built-in Host
VIS-15/17LSSC-AS
One-Touch Screen Sharing
Full HD Motorized Touch Display
Integrated Meeting Functions
Ultra-thin panel
Overview
This paperless meeting system integrates a motorized touchscreen that combines cutting-edge technology with innovative design. Tailored for modern business and government meetings prioritizing efficiency, convenience, and sustainability, it features HD touchscreen displays with intelligent height adjustment and optimized viewing angles. The newly added one-touch screen sharing functionality significantly enhances meeting engagement while streamlining collaboration in paperless meeting environments.
Features
• One-Touch Multi-Screen Sharing
Pure hardware architecture requiring no software. Instantly broadcasts current screen signals to all motorized displays and main LED wall via single click.
Type-C Rapid Charging
Dedicated Type-C port enables high-speed device charging.
• Type-C Rapid Charging
Dedicated Type-C port enables high-speed device charging.

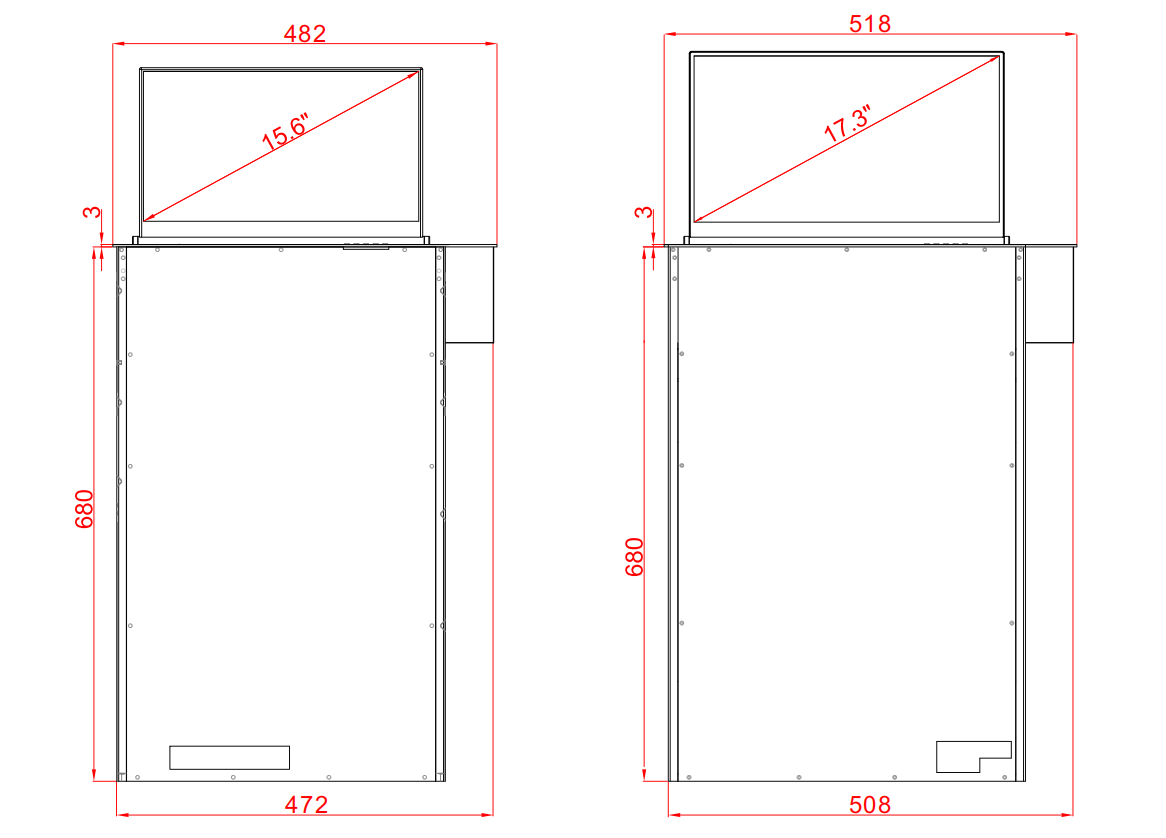

• 16:9 Motorized 15.6" /17.3" IPS Display
1080p wide-viewing-angle panel with height adjustment. 10-point projected capacitive touch (PCT) resists dust/fingerprints (≤2oz activation force, ≤3ms response).
• Curved Full-Lamination Display
Seamless edge-to-edge design with ≤5mm ultra-narrow black bezel. Full-bonding process ensures color accuracy and dust-proof structural integrity.
• 12VDC Secure Power System
External DC power supply (no 220VAC components) engineered to eliminate leakage risks.
• Motorized Display Control
Dual HDMI inputs (HDMI1/HDMI2) with auto-source detection. Toggle signals manually via physical button. Sleep mode activates automatically during signal loss.
• Expandable voting, interpretation and audio amplification modules
2×3.5mm amplified audio outputs; 1×RJ11 voting port
• 15.6"/17.3" ultra-slim HD IPS display (16:9 aspect ratio, 1080p); 10-point capacitive touchscreen with anti-glare/dustproof coating (≤2oz sensitivity, ≤3ms response, ≤5mm ultra-narrow black bezel)
• One-touch screen sharing to all motorized displays and main LED wall
• Supports simultaneous HD signal input via HDMI1 and HDMI2. It automatically detects single-source signals, enables manual switching between dual inputs via the front-panel button, and activates power-saving mode automatically during signal absence.
• There are 2×3.5mm amplified audio outputs; 1×RJ11 voting port; 2×RJ45, and expandable voting, interpretation and audio amplification modules
• Panel controls display lift/lower/stop/tilt (auto-15°tilt when raised, 30°max manual tilt).
• Smart lift system: Auto-power on/off with position detection.
• Dustproof USB port for local files or server uploads.
• Type-C port for fast charging.
• Removable fuse with overload/short-circuit/leakage protection.
