HDBaseT Video Transmitter
VIS-HE7H-T/VIS-HE10H-T
Has Scaler function
Three engineering application modes
One HDMI input and one HDMI loop output
Provides multiple resolutions and test images output

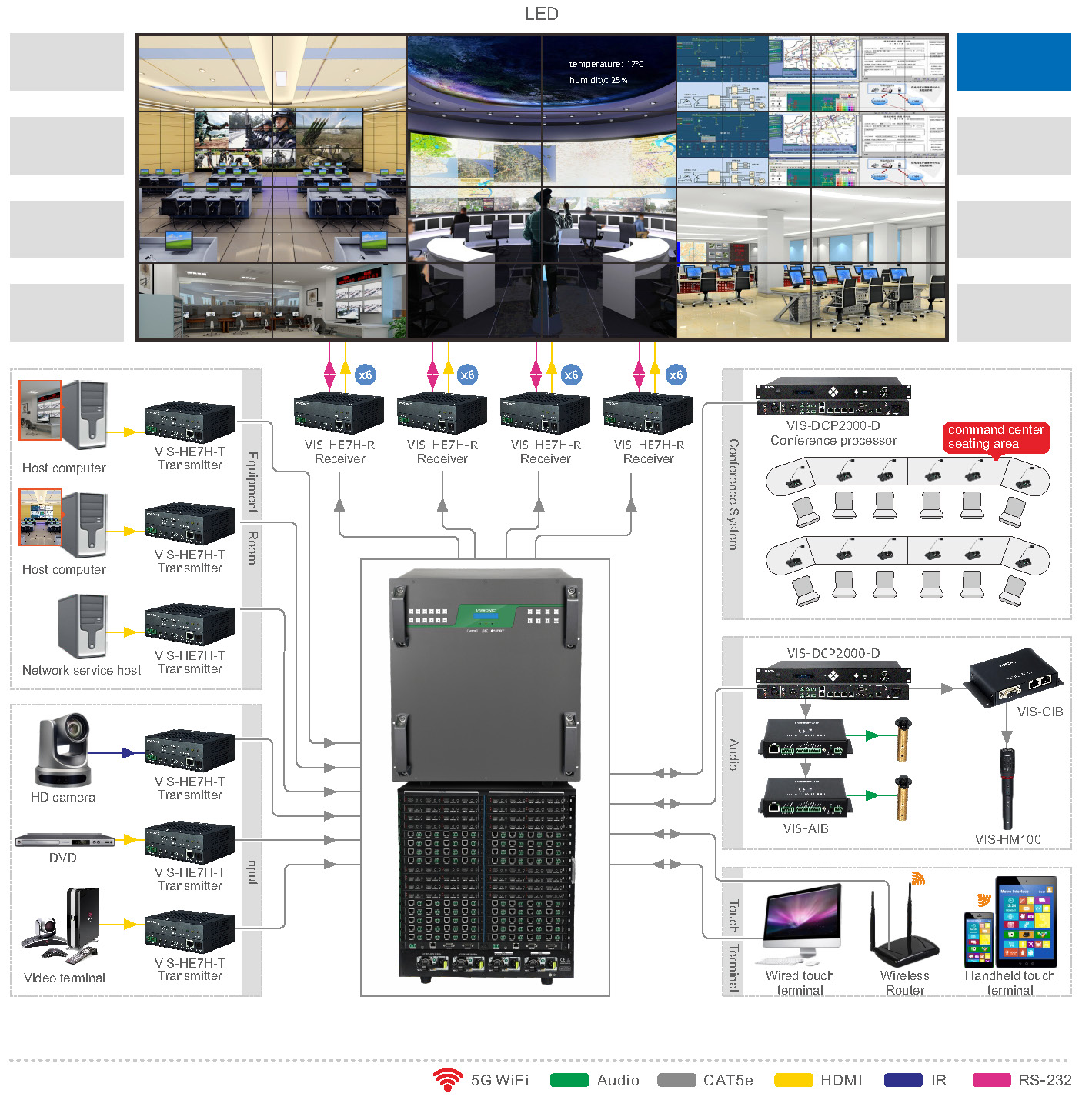

VIS-HE7H-T/VIS-HE10H-T is a video extension transmitter which is integrated with VISSONIC video matrix, processor or transmitter/receiver.
It used for sending HDMI 1080P up to 70m/100m or HDMI 4K@60 Hz (YCbCr420) up to 40m/70m, audio, bi-directional RS232 and IR signals based on shielded CAT6 cables. 4K@60 Hz 4:4:4 input, HDMI 2.0, HDCP 2.2/2.3 are supported. It has three engineering application modes, and is compatible with twisted pair boards of X9 series, M5 Series, VS series matrix/processor, which is convenient for installation, troubleshooting, and improves compatibility.
● Transmission of HDMI, audio and control signal over shielded CATX cable up to 70/100 meters;
● Has one HDMI input and one HDMI loop output;
● Realized HDMI 2.0b specifically include data rates up to 18 Gbps, 3D graphics;
● Compatible with HDCP 2.2/2.3, and earlier such as HDCP1.4, etc. Guarantee the display of content-protected 4K video media;
● The internal signal generator provides multiple resolutions and test images output for engineering debugging;
● Maximum 4K@60 Hz 4:4:4 signal input in the Def mode;
● Has Scaler function, 4K image can be set to 1080P output;
● In the Pass mode, the output image is synchronized with the source image;
● Provides de-embedding HDMI audio for 3.5mm audio port output;
● Audio output frequency 32 KHz–192 KHz, supports all compressed and uncompressed audio formats, such as 2.0/2.1/5.1/7.1 channel LPCM, Dolby, AC3, DTS, etc.;
● Allows to query version, set working mode, set resolution, manage EDID, update firmware, restore factory settings, etc. through RS232 interface;
● Bi-directional RS232 and IR pass-through, the RS232 and IR signals can be transmitted together with video signals, no need for additional wiring to control remote AV equipment;
● Compatible with shielded CAT5e/CAT6/CAT6a;
● Support POC power supply at the sending end or receiving end;
● Has LED indicators with video input, power and link status, conveniently real-time feedback and monitor of key performance parameters;
● RJ45 signal and link LED of HDBaseT ports, providing a method of verifying signal flow and operation to quickly identify connection problems;
● With a small case, allows to be discreetly installed wherever it is needed;
● Wide voltage power supply, permits to use DC 12V to 48V power adapter.
