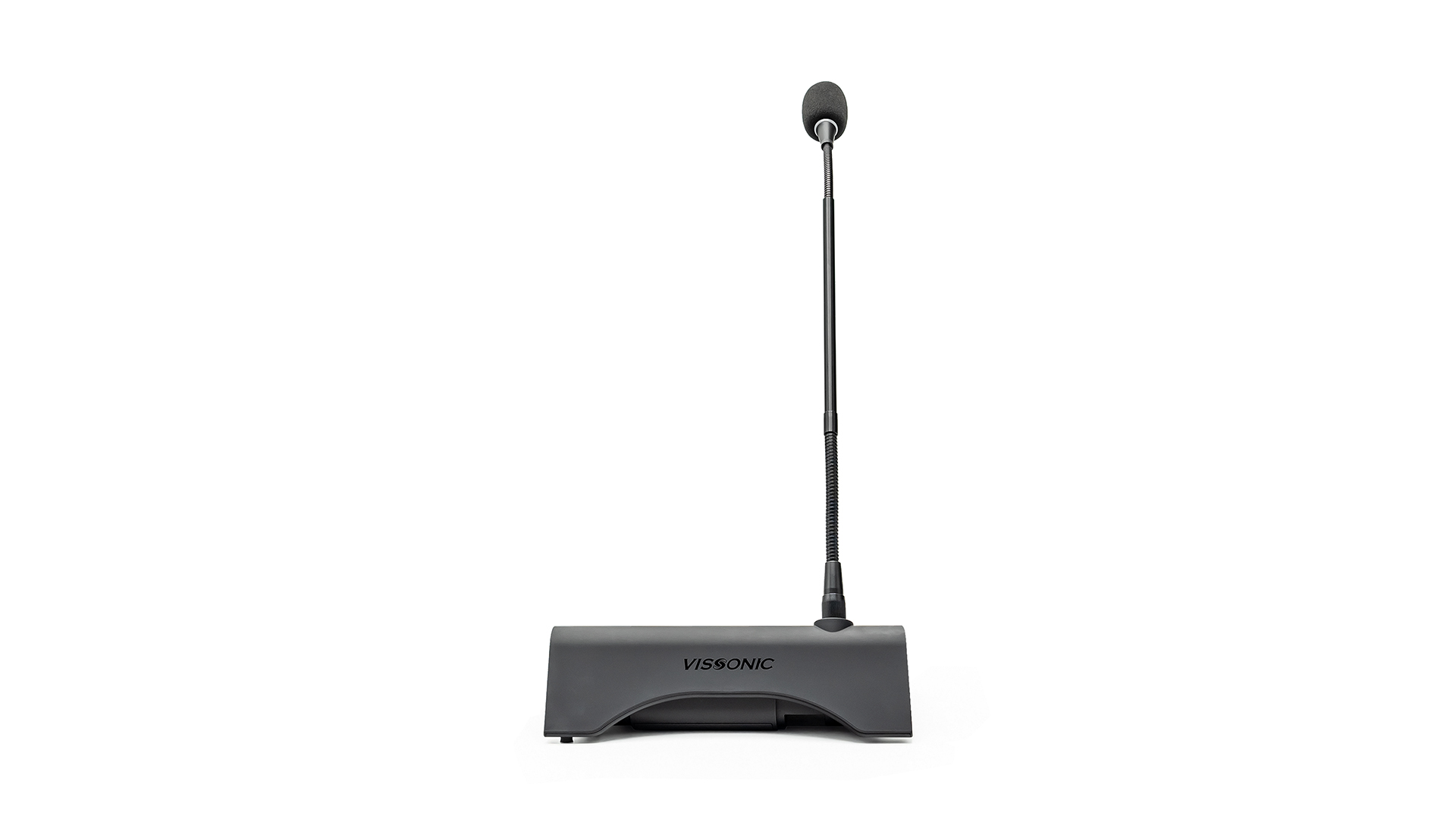

CLEACON V2 Wi-Fi Wireless Conference System Multi-Media Wireless Touch Screen Unit

4.3 inch color touch screen

Can set as chairman, delegate, VIP or dual users

Dual-channel, 5G wifi and wired network

Powered by cable, battery or dock directly

Built-in dual headphones ports

Built-in RFID card authentication, sign-in by IC card and voting(optional)

        Overview


New CLEACON V2 WiFi wireless touch screen unit, with 4.3' touch screen  (Not included MIC and battery) screen information includes speaking list, request to speak list, voting results, EQ settings etc, this unit base support both wired and wireless connection, with a CAT5 cable to work as wired unit and charging battery. IC card identification



        Features


● 4.3-inch capacitive color touch screen with stylish and low-profile design

● Built-in NFC card reader for quick identification of participants

● All-in-one touch screen conference unit can be configured into one chairman unit, delegate unit, VIP unit or dual delegate unit according to the different needs of each meeting

● The integration of 5G WiFi wireless and wired network, dual connection to communicate makes the meetings be not interrupted

● Three charging methods: replaceable battery power supply, microphone base charging, wired POE network charging. The battery intelligent visual management is carried out in three ways: unit display screen, web server and PC software

● Wireless communication, setting up all system in few minutes to be ready for using, and put them away in short time as well

● Detachable battery pack is easy to replace and charge. The battery can provide 20 hours of runtime after it is fully charged

● Internal high-fidelity loudspeaker

● Pluggable microphone and long-range sound pickup ability, support different length of microphone.

● Head-set interface in both sides with volume adjust

● Line-in interface which allows microphone or other line-in device like cell phone, laptop to pass audio through to perform teleconference

● Full-digital signal transmission and processing, completely avoid the RF interference from cell phone or similar devices.

● The unit showing time/date on the screen. Timer on display to set certain time for each delegate to speak, will remind user or close the MIC automatically.

● Easily expand functions by setting software modules



        Functions


● Compliance with IEC 60914, GBT 15381-94

● Standard Wi-Fi technology is compatible with other Wi-Fi networks, support 2.4GHz and 5GHz on all channels.

● Full-digital transmission and processing technology in uncompressed audio, professional microphone to achieve perfect sound quality at 20Hz ~ 20KHz;

● 128 bits digital encryption technology, with WAP2 secure connection, MAC address filtering, SSID-hiding to prevent wiretapping and unauthorized access from delegate unit

● One AP can work with more than 40 wireless units, and more units can be connected by extension APs

● 6 wireless units can be activated at the same time by the users

● Support more AP working together to increasing the Wi-Fi coverage range for wireless MIC units working in a large conference room or multi-rooms

● With our HD PTZ camera and video matrix switcher, using RS485 or RS232 protocol to send the PELCO/VISCA protocol to realize camera auto-tracking function

● Precise cardioid directional microphone capsule with anti-wind microphone foam, with two-color LED indicator

● Button for MIC ON/OFF, Priority & Apply Answer button for chairman unit

● Built-in high-fidelity speakers, it automatically mutes to prevent howling when press MIC ON

● Head-set interface in both sides with volume adjustment.

● AGC (Automatic Gain Control)/AFC (Adaptive Feedback Cancellation)/ANC (Active Noise Cancellation)/Mix (Auto-Mix) technology

● Build-in functions for intercom

● Contains five optional function modules:

◼ Voting: three-button / two-button voting

◼ NFC identification: Sign in with NFC card to accurately identify user information.

◼ Simultaneous interpretation channel: There are 2 language channel selectors and each selector has 64 languages independent selection

◼ Dual users: Support two participants sharing one unit to achieve camera tracking at two locations; enabling two delegates to vote on one unit

● Without using PC software, our conference controller still owns following settings:

◼ Limit on the number of speaking persons: By Setting the number of active units at the same time

(Number is 1/2/4/6/ units)

◼ Discussion modes: "OPEN" Free for all, limited by the active units setting by controller, "OVERRIDE" First in First out, "VOICE" Can activate MIC by detecting sound without press button, "APPLY" To apply then to speak

● The unit showing real time on the screen, and count-down timer for speaking person.

● Detachable battery pack is easy to replace and charge. The battery can provide 20 hours of runtime after it is fully charged. Power-saving technology enables the microphone to be continuously used for 20 hours and standby for 35 hours.

● Combined with camera and camera tracking controller, it has an automatic camera tracking function.

● Built-in MCU, support wireless upgrade of all units.

● With voice control function, you can adjust the sensitivity of voice control, intelligently turn on the microphone and set the off time.



        Model for Order


VIS-MAW-T..............WiFi wireless touchscreen unit, battery and microphone are not included

VIS-WBTY2..............Battery pack for each unit,7.2VDC,5000mA

VIS-WBTY2-H..............Battery pack for each unit,7.2VDC,6500mA

VIS-WCH2.................Charger for battery

VIS-M220..................Pluggable Gooseneck Microphone 220mm, unique design

VIS-M330..................330mm Microphone, with anti-wind foam cover

VIS-M410..................410mm Microphone, with anti-wind foam cover

VIS-M485..................485mm Microphone, with anti-wind foam cover

VIS-M600..................600mm Microphone, with anti-wind foam cover


Optional function license

VIS-ALGE ................... Dual 64-channel selector software module

VIS-AVOTE ................ Vote software module

VIS-AIDEN ................. NFC identification software module

VIS-ADUAL ................ Dual user software module



        System Diagram
