Wireless Discussion Unit
VIS-WFC-T/VIS-WFD-T
Touch-sensitive button
Resist RF interference
5GHz is available
Dual 3.5mm stereo headphone jacks
Type-C charging, 10 hours of continuous speaking

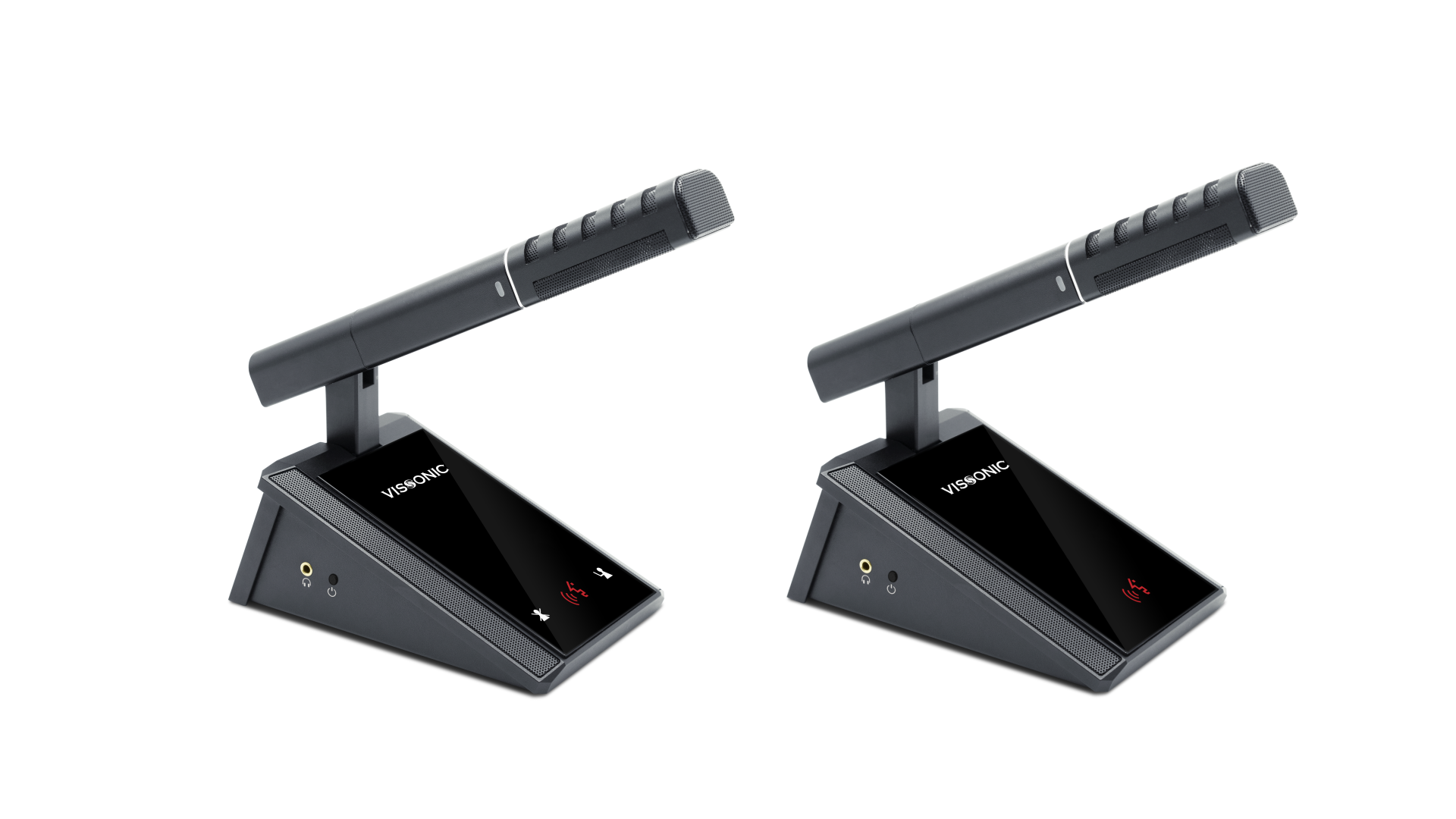

VIS-WFC-T is the wireless conference system unit combines advanced technology with user-friendly design, offering effortless setup and maximum efficiency for modern meetings. Powered by standard Wi-Fi technology, it seamlessly integrates with existing networks, ensuring zero interference by selecting from multiple frequency points. Its elegant design with anti-scratch and dustproof glass, maintaining a flawless appearance even after extensive use.
● Detachable microphone connection base, one battery compartment and one TYPE-C charging port.
● Standard Wi-Fi supports 5GHz channel, ensuring coexistence with other networks;
● Dual 3.5mm audio interfaces enable headphone or recording output;
● Built-in 2W fidelity speakers provide sound amplification for various venue sizes;
● Digital signal processing prevents RF interference from devices like mobile phones;
● Units can be configured as chairman or representative via software, with up to 32 VIP representative units allowed, operating freely within an 8-microphone limit;
● Microphone features a dual-color LED ring: red indicates speaking status, green shows a request to speak;
● Power and signal strength check button, with dual-color indicator for battery and signal strength;
● Equipped with power on/off button, microphone on/off button;
● Chairman unit includes a priority button and a request approval button.
Model for Order：
VIS-WFC-T..............Wireless Discussion Chairman Unit
VIS-WFD-T..............Wireless Discussion Delegate Unit
VIS-DCP2000-W..............5GHz Wireless DSP Conference Processor
VIS-AP4C..............5GHz Conference Access Point
VIS-WCH3-U..............Wireless Conference Unit Charger
VIS-MDA-F..............Rectangular microphone, Digital + Analog output dual backup microphone
VIS-MDM-F..............Rectangular microphone, long-distance array microphone
VIS-M220..............Pluggable Gooseneck Microphone 220mm, unique design
VIS-M330..............330mm Microphone. with anti-wind foam cover
VIS-M410..............410mm Microphone, with anti-wind foam cover
VIS-M485..............485mm Microphone, with anti-wind foam cover
VIS-M600..............600mm Microphone, with anti-wind foam cover
● Compatible with IEC 60914, GB/T 15381-94;
● Full digital transmission and processing technology, uncompressed audio transmission, using professional microphones to achieve perfect sound quality from 20Hz to 20KHz.
● 128-bit digital encryption technology, with WPA2 secure connection, MAC address filtering, and hidden SSL security to prevent eavesdropping and unauthorized access;
● High-fidelity sound quality, the wireless unit supports up to 6 microphones being turned on at the same time;
● The system also provides RS485, RS232, and IP to send PELCO and VISCA protocols. When used with a camera and video switcher, it has an automatic camera tracking function.
● Built-in fidelity speaker, after turning on the microphone, the speaker will automatically mute to prevent howling;
When separated from the computer, the conference system can also achieve:
● Speaker number limit function: You can set representative speaking units to be turned on at the same time (the number is 1/2/4/6 units). supporting 2 chairmen or VIPs without restrictions;
Equipped with following speaking modes:
● "OPEN" open mode, "VOICE" voice control mode, "FIFO" first in first out mode, "Apply" application mode
● Chairman unit priority supports two modes: close all and temporary mute:
● The chairman unit has an approve application to speak button;
● Type-C charging and can speak continuously for 10 hours.
